Magnetic Gigabit Single Port RJ45 Connectors Tab Down Tht Solder Pin

ZHEJIANG SAK ELECTRONICS CO.,LTD
Contact Now

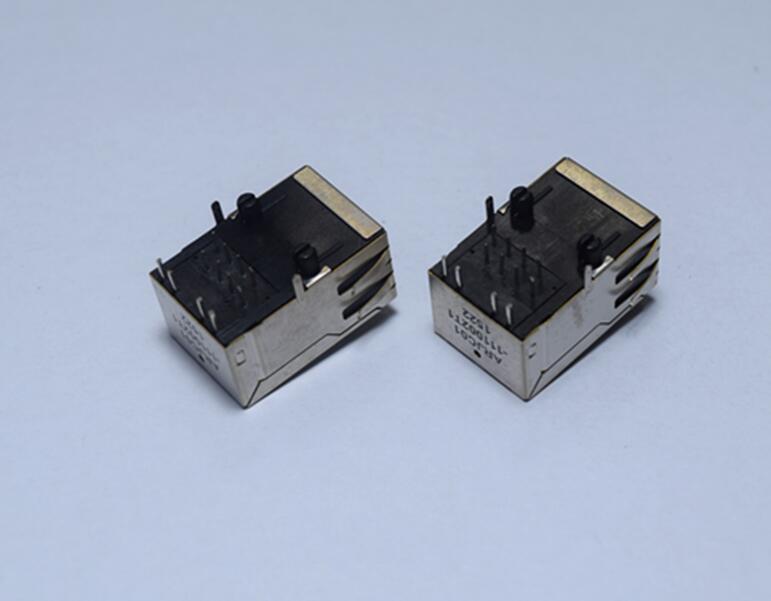

Magnetic Gigabit Single Port RJ45 Connectors Tab Down Tht Solder Pin

  • 1
  • 2

Brand Name : CSAK

Model Number : SK02-111009APNL

Certification : RoHs , UL , SGS

Place of Origin : GuangDong

MOQ : 300pcs

Price : Price to be negotiated in person

Payment Terms : T/T

Supply Ability : 1000,000pcs/Month

Delivery Time : 24-30 work days

Packaging Details : 100pcs/Tray

Name : Tab Down Single Port Connector

Gold-Plated : 3u", 6u", 15u", 30u", 50u"

PCB Mount Angle : Side Enter

Production Process : Welding

Pin Type : Tht Solder

Hi-Pot : 1500vrms

Contact Now

Magnetics Gigabit Single Port RJ45 Connectors Tab Down Shielded / Thru Hole

SPECFICATIONS

Material
1. Housing ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0)
2. Contact Wire Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness phosphor bronze alloy selective gold plating over nickel
3. Shield 0.20~0.25mm thickness brass with tin plated
4. Gold Plating 3u" , 6u" , 15u" , 30u" , 50u" .
5. RoHS peak wave solder RoHS-5 peak wave solder temperature rating 235ºC±5ºC
6. RoHS peak wave solder RoHS-6 peak wave solder temperature rating 260ºC±5ºC

Description

Electrical

Mechanical
Current rating: 1.5A Insertion force: 2 contacts---350g
Voltage rating: 120V AC 4 contacts---500g
Insulation resistance: 500MΩ Min 6 contacts---750g
Withstand voltage: AC 1500 V RMS 50Hz or 60Hz 1 Min 8 contacts---900g
Contact resistance: 20mΩ Max 10 contacts---1050g
Retention strength: 7.7Kg between jack and plug
Durability: 750 mating cycles mini

Features:

1) LEDWith/Without
2) EMI Fingers -Top and Sides With/Without
3) Latch OrientationTape UP/Down
4) PCB Tail Length3.50± 0.50mm

Single Port RJ45 :

1. Current Rating 1.5 amps
2. Voltage Rating 125vac
3. Insulation Resistance 500 MΩmin
4. Contact Resistance 30 MΩmax
5. Withstanding Voltage AC 1500V RMS 50Hz or 60Hz 1 min
6. Instertion Loss: -1.2dB Maximum @100KHz-100MHz

History :

July 2012 Get the British SIRA ISO9001:2008 certification.
Jan. 2012 Build cooperation with Alcatel-lucent and begin to supply 1000M connectors.
2011 Set about designing 10G RJ45,which has the Intellectual Property Core.
2010 Leqing SAK Electronics Co., Ltd. renamed Zhejiang SAK Electronics Co., Ltd. and became China Customs Class- A Management Enterprise.
2009 Be the supplier of Huawei and ZTE(OEM).
2008 Cooperate with Europe 's leading electronic products design company to develop the PCBA of POS.
2007 Make business relation with famous EMS company(Flextronics).
2006 Shenzhen factory was founded to design and manufacture RJ45 with filter.
2005 All series of products got the UL certification.
2004 National import and export right.
2003 Pass CQCISO9001:2000 Quality System Attestation.
2002 Leqing SAK Electronics Co., Ltd. was founded in December.

Magnetic Gigabit Single Port RJ45 Connectors Tab Down Tht Solder Pin
