Right Angle 8 Pin RJ45 Single Port Modular Socket Conenctor 180 Degree For Router

Right Angle Tab-down RJ45 Single Port LED Panel Grounds 180 Degree for Router

MATERIAL:

Housing: PA46, 30% GF, UL 94V-0, BLACK COLOR
Cover: PA66, 30%GF, UL 94V-0, BLACK COLOR
RJ Contact; Phosphor Bronze
Joint Contact: Brass
Shell: Brass

Finish

RJ contact: Gold flash plating on contact area
2.54mm(100m")min, mette-tin on sloder tail
1.27mm(50m")min nickel underplating overall
Joint Contact: 2.54mm(100m")min, mette-tin on sloder tail
1.27mm(50m")min nickel underplating overall
Shell: 0.76mm(30m")min, nickel plating

• HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

100% Guarantee Qualtiy

• Manufactured Under Strict Controls.

• 100% Tested (Not Just Batch Tested)

• LINK-PP Is OEM Of TE (Tyco) For 9 Years

• Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…

• LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)

• Quality Guarantee:6 Years

Material specifications:

• Plastic core:Glass fiber filler PBT Black(UL94V-0)
• Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
• PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
• Housing:Phenolic, PBT Black (UL94V-0)
• Metal shell:Copper Alloy ,Tin and Nickel plated

cat6 rj45 connector

modular rj45 jack

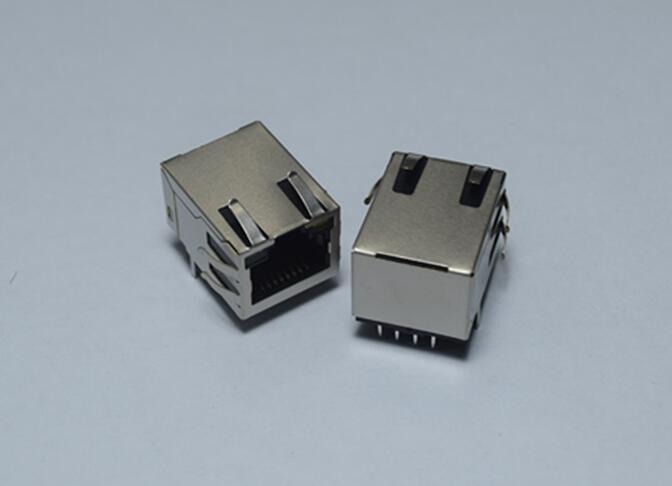

Right Angle 8 Pin RJ45 Single Port Modular Socket Conenctor 180 Degree For Router Images
