USB 3.0 Female RJ45 Single Port Connector 4P4C / 6P6C Jack Side Enter

Product Categories

ZHEJIANG SAK ELECTRONICS CO.,LTD

Contact Now

USB 3.0 Female RJ45 Single Port Connector 4P4C / 6P6C Jack Side Enter

Name: USB 30 Female RJ45 Single Port Connector 4P4C 6P6C Jack Side Enter
Brand: CSAK
Price: 1 USD

China USB 3.0 Female RJ45 Single Port Connector 4P4C / 6P6C Jack Side Enter wholesale

Brand Name : CSAK

Model Number : SK02-111009APNL

Certification : RoHs , UL , SGS

Place of Origin : GuangDong

MOQ : 300pcs

Price : Price to be negotiated in person

Payment Terms : T/T

Supply Ability : 1000,000pcs/Month

Delivery Time : 24-30 work days

Packaging Details : 100pcs/Tray

Name : 4P4C Single Port Connector

Gold-Plated : 3u", 6u", 15u", 30u", 50u"

PCB Mount Angle : SIDE ENTRY

Production Process : Welding

Mount Stlye : Though Hole

Speed : 100base-T

Contact Now

USB 3.0 Female Jack Single port RJ45 Connector Plastic 4P4C / 6p6c Jack Top Enter

SPECFICATIONS

Series	Connectors, Interconnects
Connector Type	Jack
Mounting Type	Thru-Hole
Orientation	Side Enter
Termination	Solder
LED Color	No
Shielding	No Shield

Description

Housing	ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0)
Contact Wire	Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness
	phosphor bronze alloy selective gold plating over nickel
Shield	0.20~0.25mm thickness brass with tin plated
Gold Plating	3u inch,6u inch,15u inch,30u inch,50u inch
LED Specification	LED Color:	LED Wavelength:	Forward(V MAX):	Typical (V TYP):	Luminous Intensity:
	Green	560-580 nm	2.5V	2.1-2.2V	9-25 MCD
	Yellow	580-610 nm	2.5V	2.1-2.2V	9-30 MCD
	LED intensity/wavelength measured with Photo Research PR-650 Colormeter
	With a forward current of 20 mA,Absolute Maximum Ratings (Ta=25°C)
RoHS peak wave solder	RoHS peak wave solder temperature rating 240°C±5°C

Features:

1) LEDWith/Without
2) EMI Fingers -Top and Sides With/Without
3) Latch OrientationTape UP/Down
4) PCB Tail Length3.50± 0.50mm

Single Port RJ45 :

1. Current Rating 1.5 amps
2. Voltage Rating 125vac
3. Insulation Resistance 500 MΩmin
4. Contact Resistance 30 MΩmax
5. Withstanding Voltage AC 1500V RMS 50Hz or 60Hz 1 min
6. Instertion Loss: -1.2dB Maximum @100KHz-100MHz

About Us

Our main products including: RJ11 connector, RJ45 connector, RJ45 connector with USB, double layers RJ45 connector(2xn), 180 degree RJ45 connector and kinds of integrated transformer RJ45 connector. Mainly used in desktop computers, notebook computers; switches, routers, HUB, ADSL; a variety of instruments, game machines; security equipment; network TV; food chain network interface.

USB 3.0 Female RJ45 Single Port Connector 4P4C / 6P6C Jack Side Enter

Product Tags:

cat6 rj45 connector

modular rj45 jack

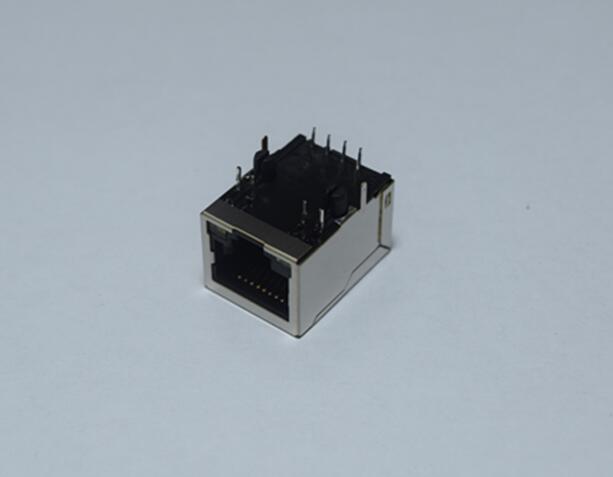

USB 3.0 Female RJ45 Single Port Connector 4P4C / 6P6C Jack Side Enter Images
