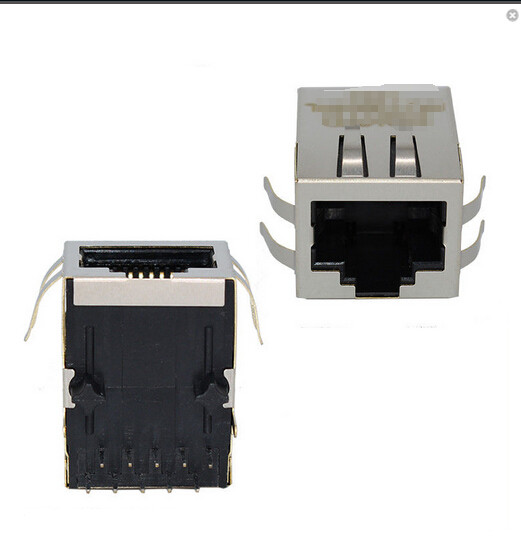

Surface Mount Integrated RJ45 Female Jack , Cat5e Cable Female Ethernet Connector

Name: Surface Mount Integrated RJ45 Female Jack Cat5e Cable Female Ethernet Connector
Brand: XINGGE
Price: 1 USD

Brand Name : XINGGE

Certification : ISO9001,SGS,UL,CE,REACH

Place of Origin : Guangdong, China (Mainland)

MOQ : 500 PCS

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 40K/day

Delivery Time : 7-15days

Packaging Details : 50pcs/tray

Number Of Contacts Loaded : 8

Port : Single Port

RJ45 PCB Terminal : Phosphor Bronze ,Tail-Tin Over Nickl

Product Name : Integrated RJ45 Female Jack

Metal Shell RJ45 : Copper Alloy ,Tin And Nickel Plated

Operating Temperature : -40°C to 85°C

Contact Now

DESCRIPTION


China supplier KRJ-118BABNL industrial gigabit ethernet connector RJ45 Female Jack
ELECTRICAL
Internal magnetics are 100% electrically tested for functionality per IEEE802.3 requirement
High performance for maximum EMI suppression
350uH minmum OCL with 8mA bias current
1. Current Rating	1.5 amps
2. Voltage Rating	125vac
3. Insulation Resistance	500 MΩmin
4. Contact Resistance	30 MΩmax
5. Withstanding Voltage	AC 1500V RMS 50Hz or 60Hz 1 min
Instertion Loss:	-1.2dB Maximum @100KHz-100MHz
Return Loss:	-18dB Minimum @1MHz-30MHz
	-14dB Minimum @30MHz-60MHz
	-12dB Minimum @60MHz-80MHz
Common Mode Rejection:	-30dB Minimum @1MHz-100MHz
Cross Talk:	-30dB Minimum @1MHz-100MHz
MECHANICAL
1. Insertion Force	2 CONTACTS....350g 4 CONTACTS….500g 6 CONTACTS….750g
	8 CONTACTS….900g 10 CONTACTS....1050g
2. Retention Strength	7.7KG.F min between jack and plug
3. Durability	800 mating cycles min
MATERIAL
1. Housing	ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0)
2. Contact Wire	Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness
	phosphor bronze alloy selective gold plating over nickel
3. Shield	0.20~0.25mm thickness brass with tin plated
4. Gold Plating	3u inch,6u inch,15u inch,30u inch,50u inch
5. RoHS peak wave solder	RoHS peak wave solder temperature rating 240°C±5°C
ENVIRONMENTAL
Operating Temperature:	-40°C to 85°C
Working Temperature	-40°C to 85°C
APPLICATION
NETWORKING PRODUCTS: NIC, HUB, SWITCH, ROUTER, BRIDGE,WORK
STATION: PC/SYSTEM, PRINTER,SERVER,NB,IACABLE MODEN,XDSL APPLICATION, SET-TOP-BOX.

10/100/1000Base-Tx RJ45 single port 1X1 Side Entry (Right Angle) without LED
Single port 1X1 Tab-Down RJ45 with internal magnetics
Internal magnetics are 100% electrically tested for HI-POT and functionality
Suitable for CAT5&6 fast Ethernet Cable or better UTP
High performance for maximum EMI suppression
Number of positions:10
Number of contacts loaded:8
Shieded:YES
Rohs compliant
Length:21.3mm
LEDS:NO
EMI finger:YES
Usage:KRJ-118BABNL

Material specifications:

Plastic core:Glass fiber filler PBT Black(UL94V-0)
Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
Housing:Phenolic, PBT Black (UL94V-0)
Metal shell:Copper Alloy ,Tin and Nickel plated
