Double Row 2 X 6 Port Stacked RJ45 Female Jack Connectors 10 / 100 / 1000Mbps

Name: Double Row 2 X 6 Port Stacked RJ45 Female Jack Connectors 10 100 1000Mbps
Brand: XINGGE
Price: 1 USD

Brand Name : XINGGE

Certification : ISO9001,SGS,UL,CE,REACH

Place of Origin : GuangDong, China

MOQ : 2000 Piece/Pieces

Payment Terms : T/T, L/C, D/A, D/P, Western Union,PAYPAL

Supply Ability : 500000 Piece/Pieces per Month

Delivery Time : 2 weeks

Packaging Details : tray

Application : PCB

Plating : 1u" - 50u" Au

Gender : Female

Typ : RJ45

Current Rating : 1.5 AMP

Voltage Rating : 125 V AC(RMS)

Contact Now

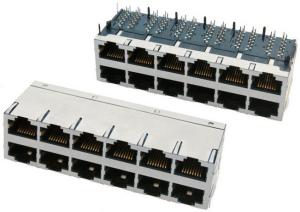

2 x 6 Gigbite 10 / 100 / 1000Mbps Stacked RJ45 Female Jack Connectors

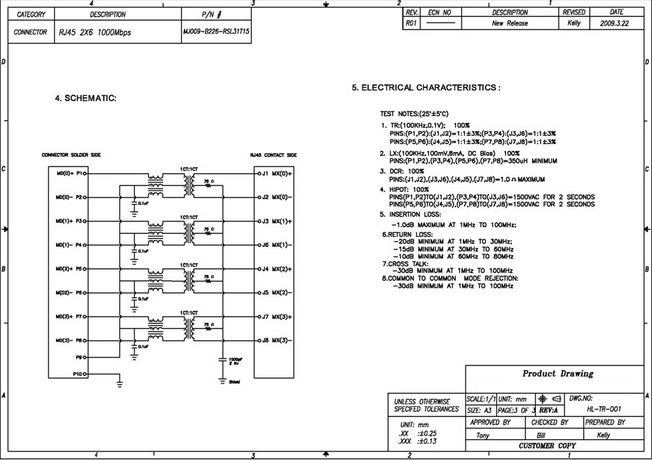

Stacked RJ45 female Jack connectors integrated with magnetics

RJ45 with integraged magnetics for 10/100Base-T
Available with or without LED
2x1 stacked Modular Jack DIP type
8 or 10-pin signal pin versions are available
High performance for maximum EMI suppression

Material

Insulator: High Temp Nylon flammability rating UL94V-0. Available in black, yellow, blue, and red
Contacts: Phosphor Bronze with gold thickness options(6u”, 15u”, 30u”, 50u”) over 50u” minimum nickel on contact mating area
Shield: Copper alloy with nickel plating
LED: Tin plating on LED tail. Epoxy lens.

Electrical

Voltage Rating: 125 V AC(RMS)
Current Rating: 1.5 AMP
Contact Resistance: 20mΩ Max.
Insulation resistance: 500MΩ Min.
Dielectric withstanding voltage: 1000 VAC RMS 60Hz, 1 Min.

Mechanical

Durability: 750 mating & unmating cycles
Mated Retention Force: 7.7kg
Operating Temperature: -40°C to +85°C

Double Row 2 X 6 Port Stacked RJ45 Female Jack Connectors 10 / 100 / 1000Mbps
