Gigabit 10 Pin POE RJ45 Female Jack , Modular RJ45 Ethernet Connector With LED
Part Number
| | KRJ-202ENL | Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | CE /UL/FCC/Reach/RoHS |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | Down |
| Filter | With Filter | LED Option | With LED |
| LED Color | Yellow & Green | Panel Stops | Without Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 10/100/1000 BASE-T | Grounding Options | Panel Ground and PCB Ground |
| Port Configuration | Single | Number of Positions | 10 |
| Jack Configuration | 1 x 1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6u/15u/30u/50u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
- Internal magnetics are 100% electrically tested for HI-POT and functionality
- Suitable for CAT5&6 fast Ethernet Cable or better UTP
- 350uHminimum OCL with 8mA bias current
- High performance for maximum EMI suppression
- Minimum 1500Vrms isolation per IEEE 802.3 requirement
- ROHS-6 peak wave solder temperature rating 260℃
- Operating temperarure range :-40℃ to +85℃
- Storage temperature range :-40℃ to +85℃
- Length:21.3mm

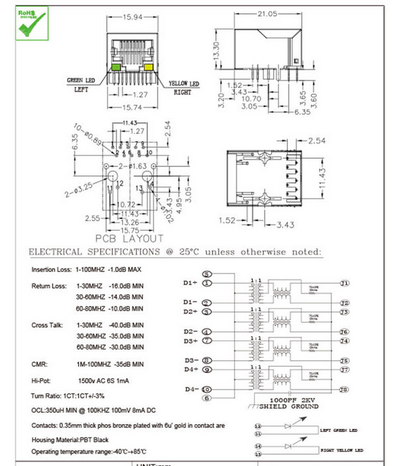

Electrical Specifications at 25℃
．Insertion Loss:1-100MHZ -1.0dBmax
．Rturn Loss:1-30MHZ -16.0dBmin
30-60MHZ -14.0dBmin
60-80MHZ -10.0dBmin
．Cross Talk:1-30MHZ -40.0dBmin
30-60MHZ -35.0dBmin
60-80MHZ -30.0dBmin
．CMR:1-100MHZ -35dBmin
．Hi-pot:1500v AC 6S 1mA
．Turn Ratio:1CT:1CT±3%
．OCL:350uH @100KHZ 100Mv 8mA DC
Applications:
Integrated RJ45 connector main used to :
• 10/100/1000M net card,PCMCIA net card,USB Hub,network switch,router,
fiber optic transceivers,optical transceiver,IP phone, internet set-top box,internet camera,net bridge,
computer,telecommunication,MODEM,HomePNA,DSL／ADSL and so on.
