10/100 Base Female 1 X 4 Port RJ45 Ethernet Connector Tab Down

ZHEJIANG SAK ELECTRONICS CO.,LTD
Contact Now

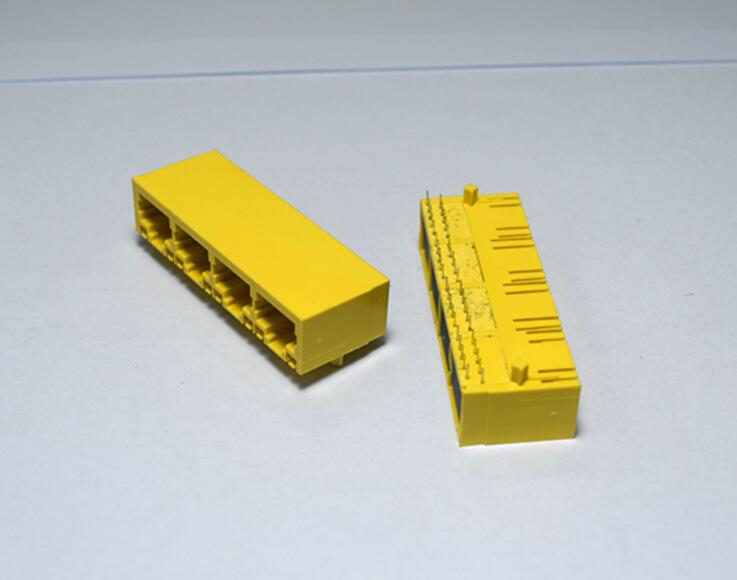

10/100 Base Female 1 X 4 Port RJ45 Ethernet Connector Tab Down

  • 1
  • 2

Brand Name : CSAK

Model Number : SK02-811008NL

Certification : RoHs , UL , SGS

Place of Origin : GuangDong

MOQ : 300pcs

Price : Price to be negotiated in person

Payment Terms : T/T

Supply Ability : 1000,000pcs/Month

Delivery Time : 24-30 work days

Packaging Details : 10pcs/Tray

Name : 4 Port Ethernet RJ45 Connector

Type : Tab Down

LED : with/ without

Insulation resistance : 500M Min

Used : Modem, Hub, Switch

Specifications : 10/100 Base

Contact Now

10/100 Base Female 1 X 4 RJ45 Multiple Port Connectors Gold Plating Tab Down

Descrition:

RJ45 ,in order to keep good touch between gold finger and crystal head,should paint the gold on the surface,there is 6u,15u,30,50u,usually use 6u,according to customer’s request and cost to proceed, gold finger insert and pull life should be 750 times above.

Specifications:

Insulation Resistance : 500MΩ MIN @500V DC

Withstanding Voltage : AC 1000V 50HZ or 60HZ 1min.

Durability: 600 Mating Circles MIN.

Gold Plating(3;6;15;30;50)u inch

Tolerances Unless Otherwise Specified

Specifications:

Operation/Application: 1)xDSL Modems
2)Embedded PC
3)LAN Applications
4)Hub, Router, Switches
Electrical Characteristics:
1) Shielded With/Without
Termination Related Features:
1) EMI Finger with/without
2) Termination Method Solder
Body Related Features:
1) LED With/Without
2) EMI Fingers -Top and Sides With/Without
3) Latch Orientation Tape UP/Down
4) PCB Tail Length 3.50±0.50mm
Contact Related Features:
1) Preloaded Yes
2) Contact Termination Type Through Hole
Housing Related Features:
1) Connector Style Jack
Industry Standards:
1) RoHS/ELV Compliance RoHS compliant, ELV compliant
2) Lead Free Solder Processes Wave solder capable to 265°C
3) RoHS/ELV Compliance History Always was RoHS compliant
Identification Marking:
1) Left LED Color Green,Yellow,Orange or Red
2) Right LED Color Green,Yellow,Orange or Red
Conditions for Usage:
1) Applies To Printed Circuit Board
2) Environmental Conditions Office / Premises
3) Operating Temperature (°C ) 0 ~ 70 /-40 ~ +85
Configuration Related Features
1) Magnetic Circuit 3D15
2) Status Indicator Led
3) Decoupling Capacitor With/Without
4) Rear PCB Ground Tab With/Without
5) Signal Lead Quantity 8

Main use:

  • Network Equipment: Modem, Hub, Switch, Router, Gateway, Firewall, Repeater, Bridge...
  • PC motherboard

Specifications at 25℃

Insertion
Loss
dB max
Return Loss dB min Crosstalk(dB TYP) Common Mode Rejection
(dB TYP)
Hipot(Vrms)
1-100MHz 1-30MHz 30-60MHz 60-80MHz 1-30MHz 30-60MHz 60-80MHz 1-50MHz 50-150MHz
-1.0 -18 -16 -12 -40 -35 -30 -30 -20 1500

10/100 Base Female 1 X 4 Port RJ45 Ethernet Connector Tab Down
