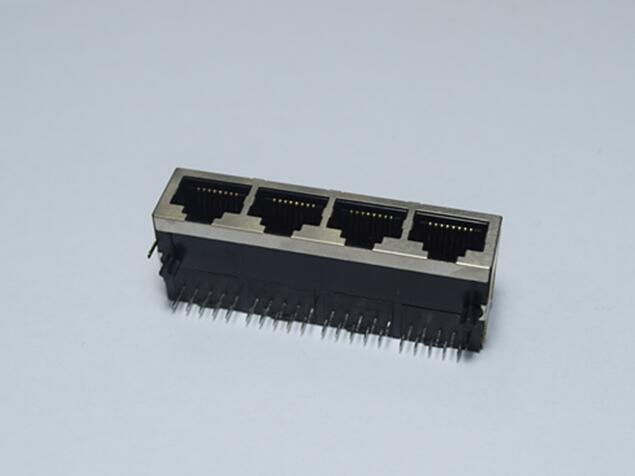

Electrical Components Socket Plug Multiple Port RJ45 Connectors Integrated
Specifications:
| | 1.5 amps |
| 2.Voltage Rating | 125vac |
| 3.Insulation Resistance | 500 MΩmin |
| 4.Contact Resistance | 30 MΩmax |
| 5.Withstanding Voltage | AC 1500V RMS 50Hz or 60Hz 1 min |
| 6.Instertion Loss | -1.2dB Maximum @100KHz-100MHz |
| 7.Return Loss | -18dB Minimum @1MHz-30MHz |
| -14dB Minimum @30MHz-60MHz |
| -12dB Minimum @60MHz-80MHz |
| 8.Common Mode Rejection | -30dB Minimum @1MHz-100MHz |
| 9.Cross Talk | -30dB Minimum @1MHz-100MHz |
Applications:
NETWORKING PRODUCTS: NIC, HUB, SWITCH, ROUTER, BRIDGE,WORK
Electrical Requirement
- Rating Voltage: 150V AC max.
- Rating Current: 1 Ampheres max.
- Contact Resistance: [30] Milliohms Max. (Initial), [50] Milliohms Max. (Final).
- Dielectric withstanding Voltage: No creeping discharge or flashover shall occur.
- Current leakage: 1mA Max. [500]VAC for 1minute.
- Test between adjacent circuits of unmated connector
Our service:
1. XingGe has been the OEM factory for Pulse
2. 100% tested before shipping
3. Have alternative for Halo, Belfuse, UDE, Tyco, YDS, YCL......Same quality but better price
4. Free sample available
5. Provide new design for customer
FAQ
1. What's your MOQ?
Normally our MOQ is 1000pcs.
2. What about the lead time for production?
3-5 days for sample, 10-15 days for bulk order.
3. How do you guarantee the quality?
All of the raw materials we used are purchased from qualified suppliers with certification approved, we promised our connectors are strictly accoring to UL, ROHS standards. QC will inspect goods before shipping to ensure the quality.
4. What's the warranty?
One year, 12 months.
