SMD RJ45 Modular Connector , SMT Modular Jack 1*1 Port Shielded Without LEDs

Name: SMD RJ45 Modular Connector SMT Modular Jack 11 Port Shielded Without LEDs
Brand: XINGGE
Price: 1 USD

Brand Name : XINGGE

Certification : ISO9001,SGS,UL,CE,REACH

Place of Origin : Guangdong, China (Mainland)

MOQ : 500 PCS

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 1000,000pcs/Month

Delivery Time : 3-30 work days

Packaging Details : Trays,Cartons

VOLTAGE RATING : 150 VAC RMS

CURRENT RATING : 1.5 AMP

DURABILITY : 750 CYCLES MIN

TEMPERATURE : -40℃ to+85℃

HOUSING MATERIAL : PBT,PA66,PA46(UL 94V-0

CONTACT RESISTANCE : 40mΩ MAX

Contact Now

SMD RJ45 Modular Connector,SMT Modular Jack 1*1 Port Shielded Without LEDs

MATERIAL:
1. HOUSING MATERIAL :	PBT,PA66,PA46(UL 94V-0
2. CONTACT MATERIAL :	FLAT PINS-0.35mm THICKNESS PHOSPHOR BRONZE.; GOLD PLATING OVER NICKEL IN CONTACT AREA; TIN PLATING OVER NICKEL IN SOLDER AREA
ELECTRICAL/PHYSICAL:
1. VOLTAGE RATING :	150 VAC RMS
2. CURRENT RATING :	1.5 AMP
3. CONTACT RESISTANCE :	40mΩ MAX
4. INSULATION RESISTANCE :	500mΩ MAX
5. DIELECTRIC WITHSTANDING RISISTANCE :	1000V AC RMS 60Hz. 1MIN
6. DURABILITY :	750 CYCLES MIN
7. TEMPERATURE :	-40℃ to+85℃

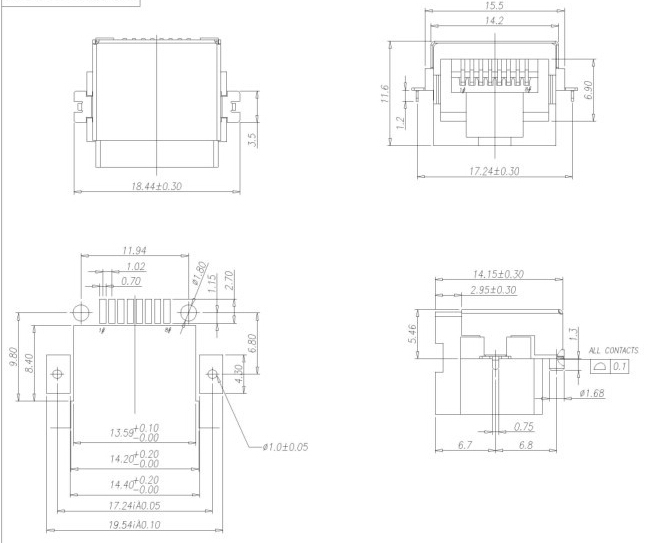

Port: 1X4

Orientation: Side entry

PCB attachment: 1> Signal tails: SMT

2> Body tails: through hole

Tab direction: tab-UP

LED Option: without LEDs

Shield Option: shielded

EMI Fingers(Ground tabs) Option: without EMI fingers

Materials

Insulator: High Temp Nylon flammability rating UL94V-0. Available in black, yellow, blue, and red
Contacts: Phosphor Bronze with gold thickness options (6u”, 15u”, 30u”, 50u”) over 50u” minimum nickel on contact mating area
Shield: Copper alloy with nickel plating
LED: Tin plating on LED tail. Epoxy lens.
