Name: 10P8C 1 X 4 Port Gigabit Ethernet Shielded RJ45 Jack With Internal Transformer
Brand: XINGGE
Price: 1 USD

Brand Name : XINGGE

Certification : ISO9001,SGS,UL,CE,REACH

Place of Origin : Guangdong, China (Mainland)

MOQ : 1pcs

Payment Terms : T/T, L/C, D/A, D/P, Western Union,PAYPAL

Supply Ability : 100K pcs/day

Delivery Time : 5-10 days

Packaging Details : 40PCS/tray

Feature : High Performance With Magnetics

LEDS/EMI Fingers : For Optional

Gender : Female RJ45

Application : Lan,bridge,PC,router,usb Hub Network Rj45

RJ45 Suitable : For CAT5&6 Ethernet Cable Or UTP

Shielded : YES

Contact Now

10P8C 1 X 4 Port Gigabit Ethernet Shielded RJ45 Jack With Internal Trans Former

Part Number

	KRJ-401QWNL	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	ISO9001/ISO14001/CE /UL/FCC/Reach/RoHS
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Connector Assembly
Latch Style	Standard	Latch	down
Filter	With Filter	LED Option	Without LED
LED Color	n/a	Panel Stops	Without Panel Stops
Shielded	YES	Applies To	Printed Circuit Board
Performance Speed	10/100/1000/10G BASE-T	Grounding Options	Panel Ground and PCB Ground
Port Configuration	4 ports	Number of Positions	10
Jack Configuration	1*4	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

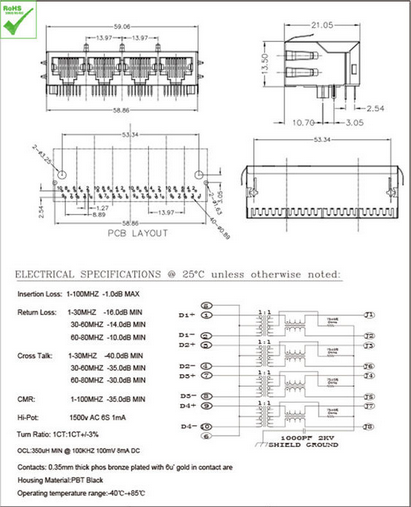

Electrical Specifications at 25℃

．Insertion Loss:1-100MHZ -1.0dBmax

．Rturn Loss:1-30MHZ -16.0dBmin

30-60MHZ -14.0dBmin

60-80MHZ -10.0dBmin

．Cross Talk:1-30MHZ -40.0dBmin

30-60MHZ -35.0dBmin

60-80MHZ -30.0dBmin

．CMR:1-100MHZ -35dBmin

．Hi-pot:1500v AC 6S 1mA

．Turn Ratio:1CT:1CT±3%

．OCL:350uH @100KHZ 100Mv 8mA DC

Applications:

• Integrated RJ45 connector main used to :

• 10/100/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical

transceiver, IP phone,internet set-top box,internet camera,net bridge,computer,telecommunication, MODEM,HomePNA,DSL／ADSL and so on.

10P8C 1 X 4 Port Gigabit Ethernet Shielded RJ45 Jack With Internal Transformer
