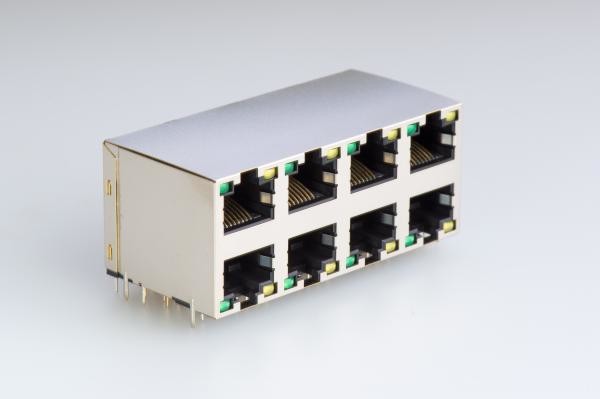

2x4 Port Modular RJ45 Network Connector

Name: 2x4 Port Modular RJ45 Network Connector
Brand: XINGGE
Price: 1 USD

Brand Name : XINGGE

Certification : ISO9001,SGS,UL,CE,REACH

Place of Origin : Guangdong, China (Mainland)

MOQ : 500 PCS

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 5,000,000pcs/Month

Delivery Time : 7-15days

Packaging Details : 10 pcs in 1 tray

Application : TV , Set Box , IP CAMER , DVR, VOIP , Computer

PCB Mount Angle : Side Enter

Main Products : RJ45 Connector

high quality : RJ45 Female Network

House : PBT

Color : Black

Contact Now

Black 2x4 Port RJ45 Female Jack 90 Degree Jack For Computer TV Set Box

Specifications

Connector Type	Jack
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Ports	8
Number of Rows	2
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Shielding	Shielded, EMI Finger
Ratings	Cat3
Features	Board Lock
LED Color	No
Tab Direction	Up
Contact Material	Copper Alloy
Contact Finish	Gold
Contact Finish Thickness	Flash
Housing Material	Thermoplastic

Eceatrical

1. voltage Rating:125 val
2. Insnlation Resiitance:500M min
3. Withstanding Voltage :AC 1000vxRMS50HZ or 60/hz1min

Mechanical

1. Operating:750 cycles min

Materical

1. Housing : PBT(vl94v-0) RA66(vl94v-0) RA46(vl94v-0)
2. Contact Wire :Diameter 0.45mm phosphor bronze gold plating over nickel
3. Gold plating :3u inch6u inch150u inch30u inch50u inch

Environmental

1. Working Temeperature:-20℃to 75℃
2. Storage Temeperature:-45℃to 85℃

Mates with modular plug conforming to FCC part 68,subpart F.

Drawing

Manufactured under strict controls	RoHS compliance
ISO 9001:2008	OEM for PULSE
UL Certification	Active Environmental policy
Reach Cetitifaction	Every module tested 3times (not just batch tested)

Unit Price

Charge only 35% ~ 60% of Pulse , Wurth(Midcom), Bothhand Belfuse, Tyco, Halo,....Etc

Service

XINGGE Offer good pre-sales & after-sales service &Strong technical support

New Project: Strong technical and ideal support your new design

Existing projects: Try to help customer to save the cost to offer the good quality product

and save time.

Free Samples: 3-5 PCS of each part number.

Shipping Fee : We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.

Customer complaint: 24-48 hours reply 8D report.

Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement,

or repair kits , if customers are not satisfied)

Design &Technical strength

We have many more than 20years experience in connector industry engineer can support

your new project.Design a new tooling time : 30-45 work days
